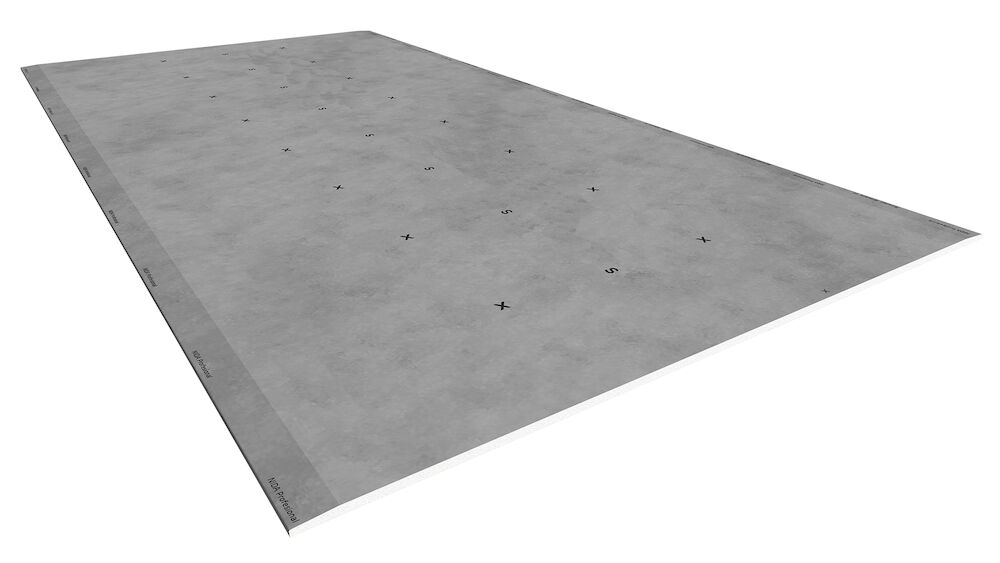

RESISTEX 12.5

RESISTEX is a grey-coloured plasterboard with a special core formulation whose surfaces and longitudinal edges are covered with a special multi-layered cardboard. In addition, Resistex offers high performance sound insulation, fire and moisture protection.

Γυψοσανίδα τύπου DFH2IR; Χρήση σε αντιδιαρρηκτικά συστήματα χωρίς να απαιτείται χαλύβδινη πλάκα
Γυψοσανίδα τύπου DFH2IR; Χρήση σε αντιδιαρρηκτικά συστήματα χωρίς να απαιτείται χαλύβδινη πλάκα

Further information

Applications:

  • RC2 and RC3 class burglary-resistant systems according to EN 1627:2011, also providing superior sound insulation and fire protection
  • indoor applications with less than 80% intermittent relative humidity, both for suspended ceilings and partitioning walls
  • residential buildings: walls between apartments and between apartments and hallways
  • commercial buildings that store valuable goods (banks, shops, jewellery, currency exchange offices)
  • busy areas with heavy traffic (stairwells, hotels, schools, hospitals, gyms)

Benefits:

  • Burglary-resistant: Resistex allows to install partitions in burglary-proof systems without the need for sheet metal (partitions class RC2 and RC3 in accordance with EN 1627:2011);
  • Sound and fire protection: with Resistex board, burglar-resistant partitions achieve superior sound insulation and fire resistance;
  • Due to the impact resistance of Resistex board, burglar-resistant partitions can be used in high traffic areas;
  • Resistex board is moisture resistant (absorption class H2 according to EN 520 + A1: 2010);
  • Easy to install: although it has significantly better mechanical characteristics than standard plasterboard, installation is done with normal self-tapping screws and cutting is done with a cutter.
Reaction to fire: A2-s1,d0
Thickness: 12,5 mm
Width: 1200 mm
Board Type: DFH2IR

Instructions for use:

  • Boards can be cut with knife (score and snap) or with manual or electrical saw for plasterboards:
  • Use plasterboard screws adapted to the board thickness and metal frame thickness;
  • Use metal frame adapted to plasterboard systems.

Handling and storage:

  • the boards should be transported with their lateral edge placed vertically, or using special transportation means (carts, forklifts, trucks);
  • the boards should be stored on pallets or wood spacers, placed at an equal distance of approx. 50 cm. The packs should be stored on dry, smooth floors, so as to prevent damages (deformation or breaking);
  • the boards should be stored and installed inside, at temperatures between 5-40°C, in rooms with relative humidity of maximum 60%;
  • the boards which get wet during storage should be completely dried prior to installation. In order to dry, the boards should be placed vertically on a level floor, so as to allow air to flow freely between them;
  • the boards should not be stored under direct sunlight for long periods of times;
  • when storing the boards, take into account the loadbearing capacity of the floor
